Perform Signing with Jarsigner and PKCS#11 Library

Code signing is a critical process in software development that ensures the authenticity and integrity of applications, protecting them from tampering and unauthorized modifications. To enhance this process, Encryption Consulting’s PKCS#11 library offers a powerful solution for performing code signing with Jarsigner across multiple operating systems, including Windows, Linux (Ubuntu), and macOS.

Jarsigner

The Jarsigner tool, included in the Java Development Kit (JDK), provides a robust mechanism for digitally signing files, making it an essential tool for Java developers distributing applications across various platforms.

It helps to sign the below mentioned file types:

.jar: Java Archive files, which are general-purpose archives for Java classes and resources.
.ear: Enterprise Archive files, used for packaging Java EE enterprise applications.
.war: Web Application Archive files, used for packaging Java web applications.
.sar: Service Archive files, used for packaging services in some Java EE environments.

Configuration of PKCS#11 Wrapper on Ubuntu

Prerequisites

Before we look into the process of signing using Jarsigner Tool and our PKCS11 Wrapper in Linux (Ubuntu) machine, ensure the following are ready:

Ubuntu Version: Ubuntu version 22.04 or later (tested environment is Ubuntu 24.02) 
Dependencies: Install liblog4cxx12 and curl.

To install the dependencies, run the following commands

sudo apt-get install curl
sudo apt-get install liblog4cxx12

Installing EC’s PKCS#11 Wrapper

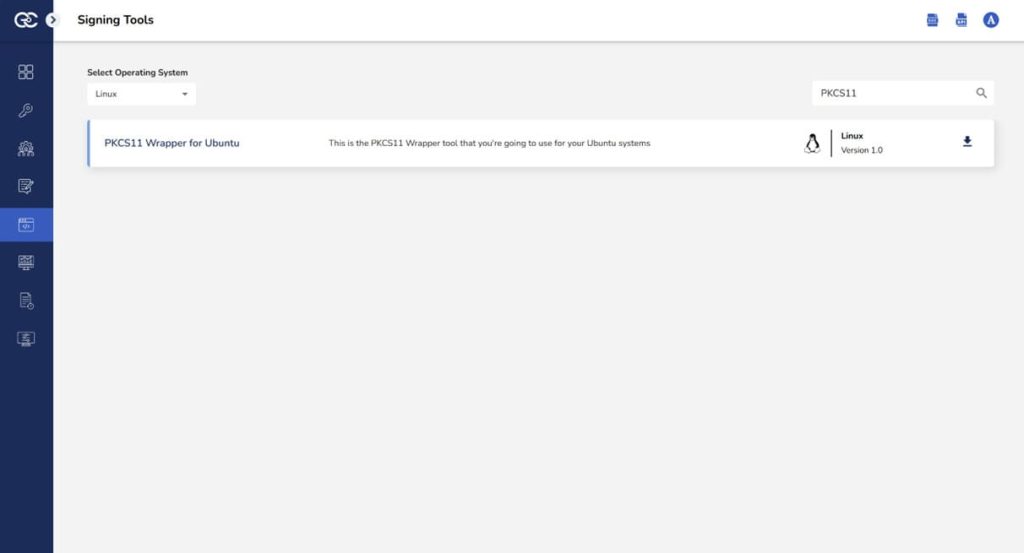

Step 1: Go to EC CodeSign Secure’s v3.02’s Signing Tools section and download the PKCS#11 Wrapper for Ubuntu. 

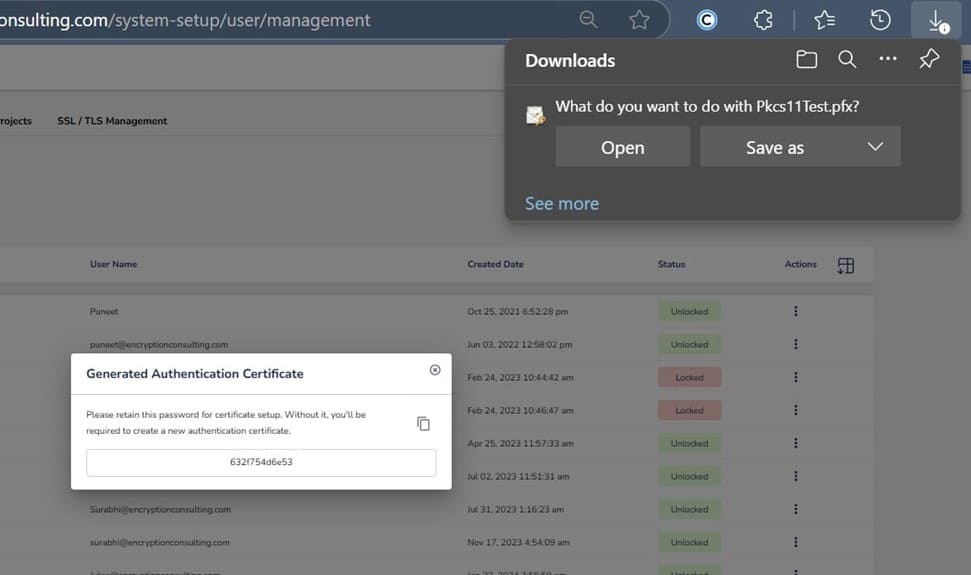

Step 2: After that, generate a P12 Authentication certificate from the System Setup > User > Generate Authentication Certificate dropdown.

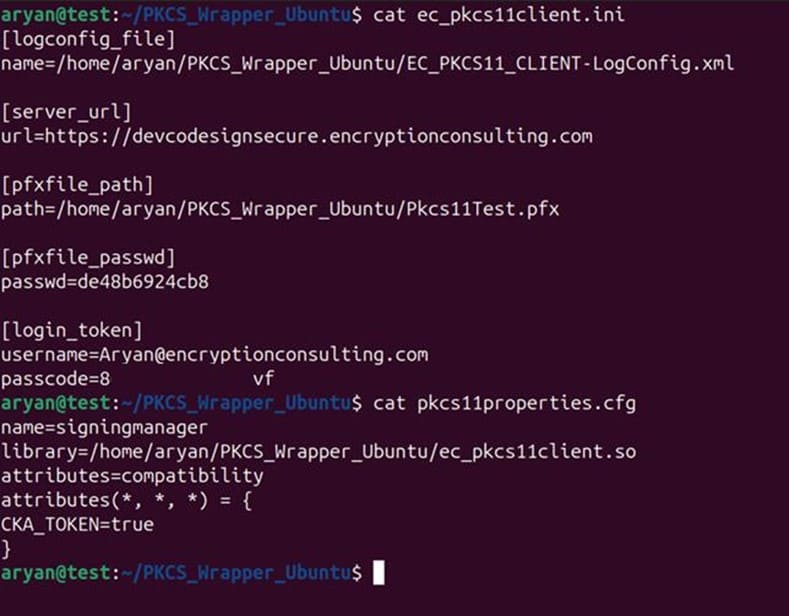

Step 3: Go to your Ubuntu client system and edit the configuration files (ec_PKCS#11client.ini and PKCS#11properties.cfg) downloaded in the PKCS#11 Wrapper.

Install Java on your Ubuntu machine.

You will also need to install Java (Java 8-17) on your Ubuntu machine for Jarsigner to work with our PKCS11 Wrapper.

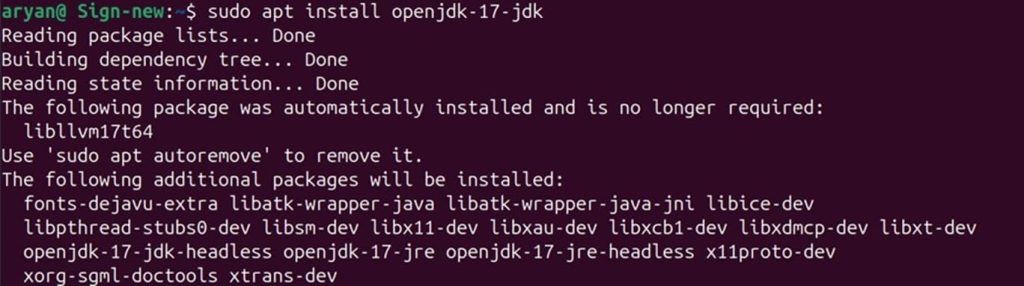

Step 1: Install Java 17 on your Ubuntu machine.

sudo apt install openjdk-17-jdk

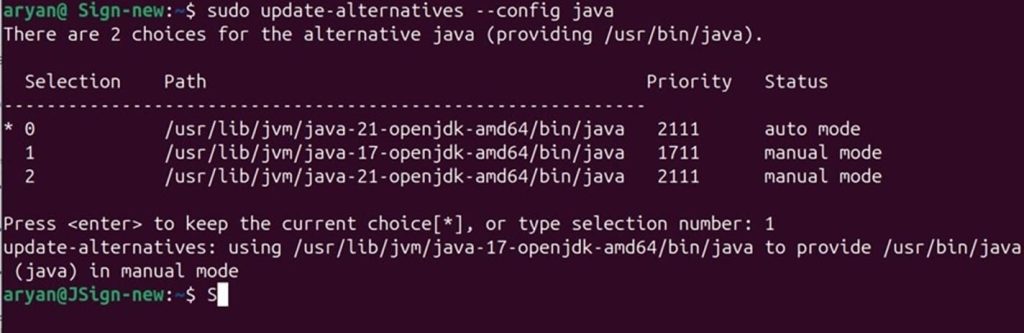

Step 2: Set Java 17 as the active version

sudo update-alternatives –config java

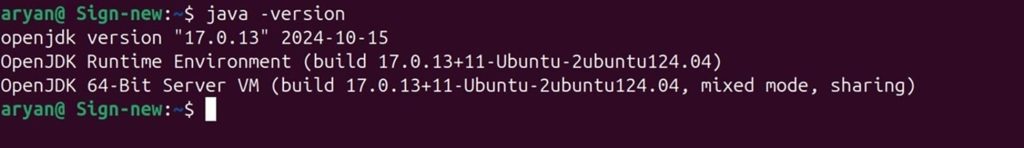

Step 3: Check whether Java has been installed properly or not

java -version

Step 4: Set Java 17 as the active version.

Run: nano ~/.bashrc

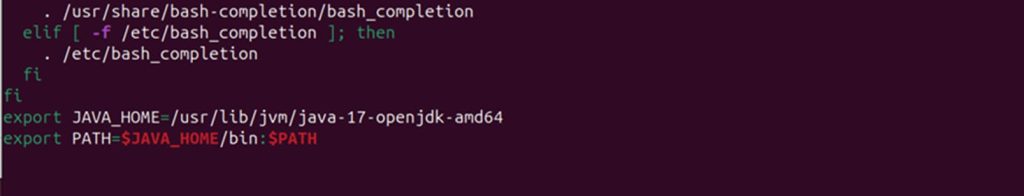

After running the above command, add these lines at the end of the file:

export JAVA_HOME=<Path of Java 17 bin folder>

export PATH=$JAVA_HOME/bin:$PATH

Press Ctrl + X, then Y to confirm, and then Enter to save.

Step 5: Reload the bashrc file

Run: source ~/.bashrc

Step 6: Check is the variable has been set

echo $JAVA_HOME

If not, then open a new terminal and try again.

Signing

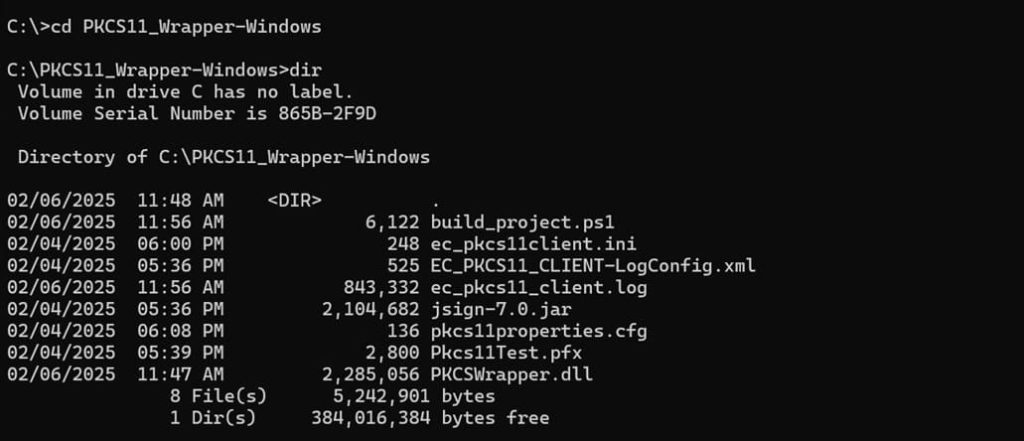

Step 1: Change the working directory of the terminal to the folder that contains your “ec_pkcs11client.ini” and “pkcs11properties.cfg” files.

Step 2: Run the signing command from this directory.

<Path of Jarsigner tool> -keystore NONE -storepass NONE -storetype PKCS11 -sigalg SHA256withRSA -providerClass sun.security.pkcs11.SunPKCS11 -providerArg <Path of pkcs11properties.cfg> -signedjar <Path of the file after signing> <Path of the file to be signed> <Key alias of the signing certificate> -tsa http://timestamp.digicert.com

A sample command is provided below:

jarsigner -keystore NONE -storepass NONE -storetype PKCS11 -sigalg SHA256withRSA -providerClass sun.security.pkcs11.SunPKCS11 -providerArg pkcs11properties.cfg -signedjar helloworld_signed.jar helloworld.jar gpg2 -tsa http://timestamp.digicert.com

Verification

Step 1: For Verification, run the following command:

<Path of Jarsigner tool> -verify <Path of the file after signing> -certs -verbose

Step 2: A sample command is provided below:

jarsigner -verify helloworld_signed.jar -certs -verbose
